CA Series

The compact construction with round head fits to the most demanding and challenging industrial actuation requests with continuous nominal pressure up to 16 MPa.

The choice of selected materials, the severe controls of 100% of all cylinders produced and the quality of the means of production, allows us to reach high standards of quality, reliability and enduring product performance.

The seals used, supplied by premium suppliers, grant high performance and international availability. The wide range of seals, allows us to offer cylinders for applications with different kinds of hydraulic fluids, speed, frequency and operating temperature.

Our production includes the optional integration of position transducers.

Technical charateristics:

Standard ISO 6020/1
Nominal pressure 16 MPa (continuous operation)
Maximum pressure 25 MPa
Bore 40-320 mm
Stroke up to 4000 mm
Single or double rod
Up to 2 rod diameter per bore

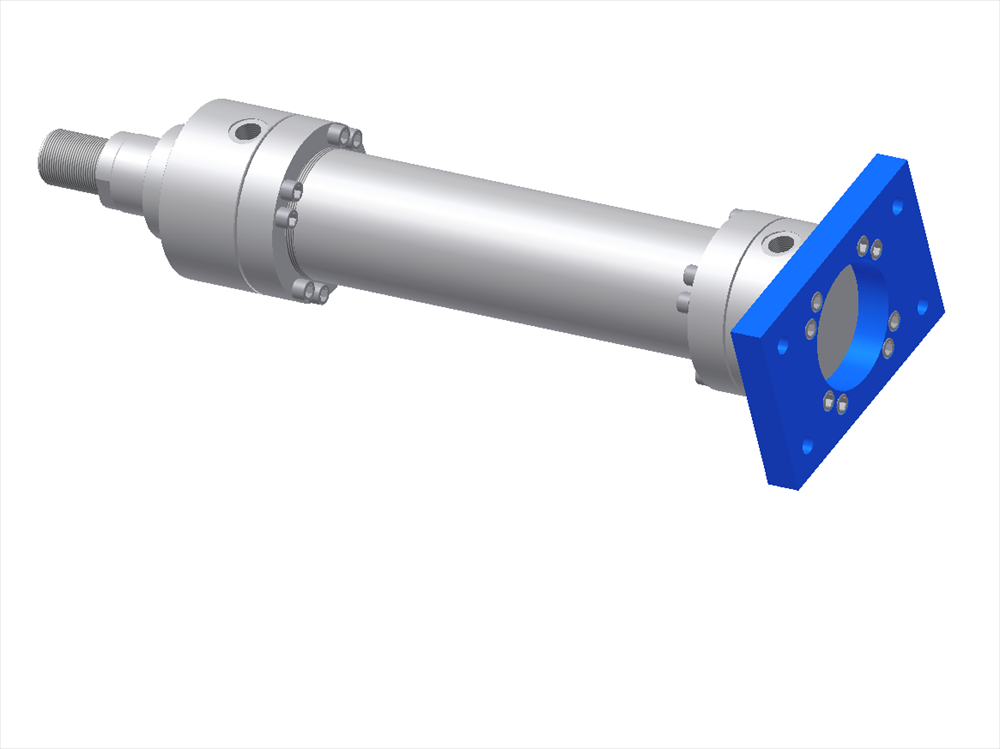

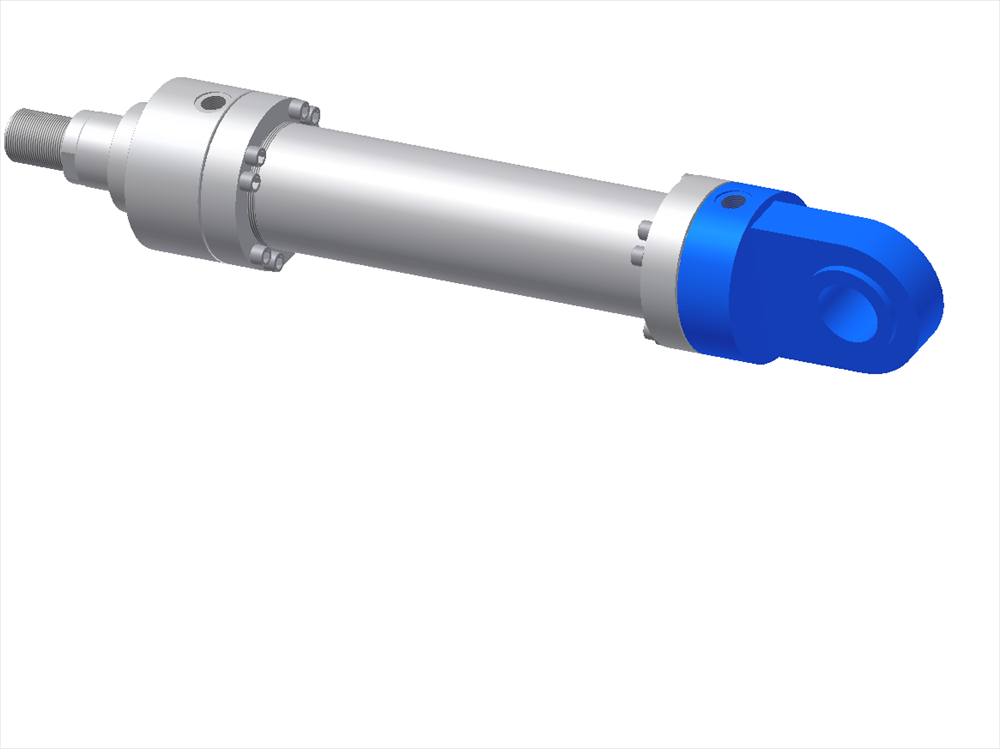

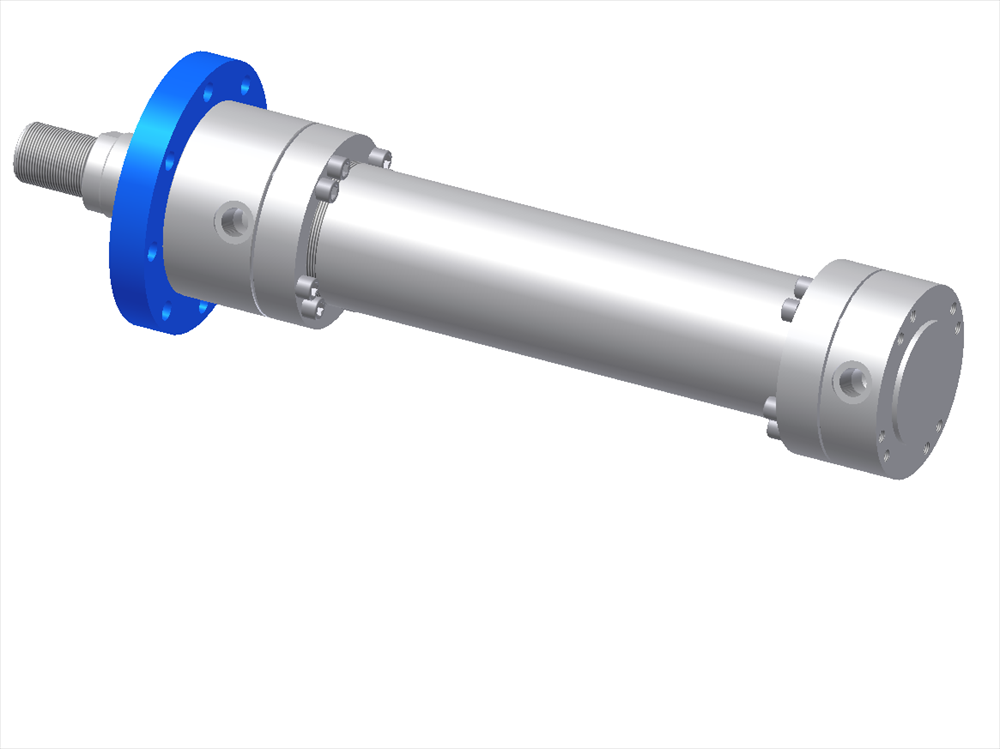

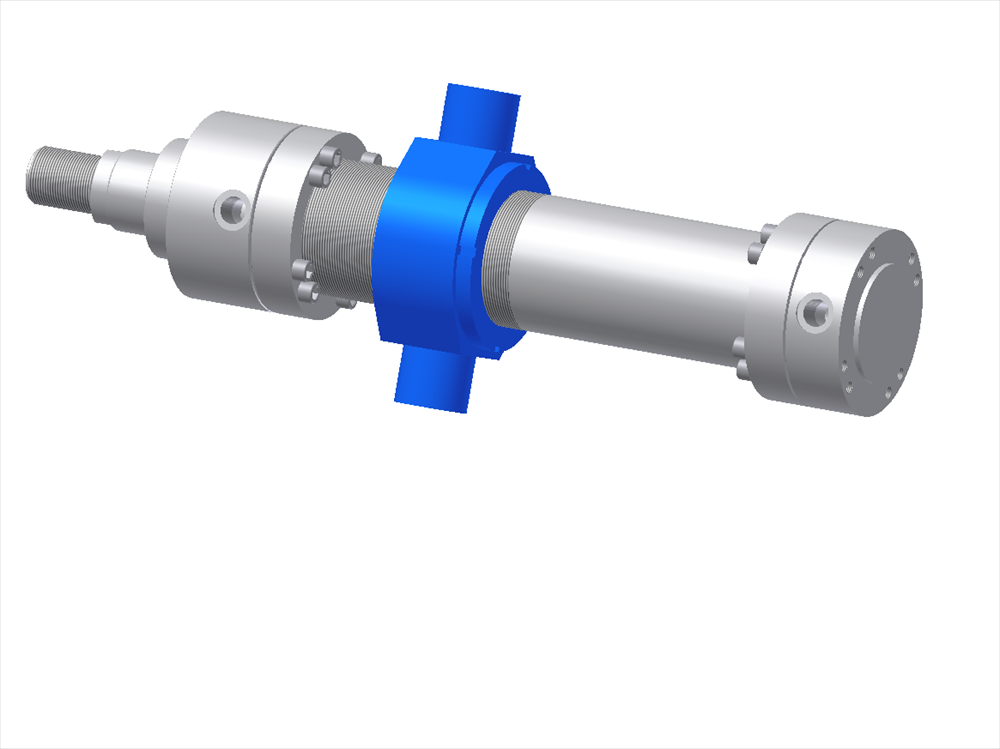

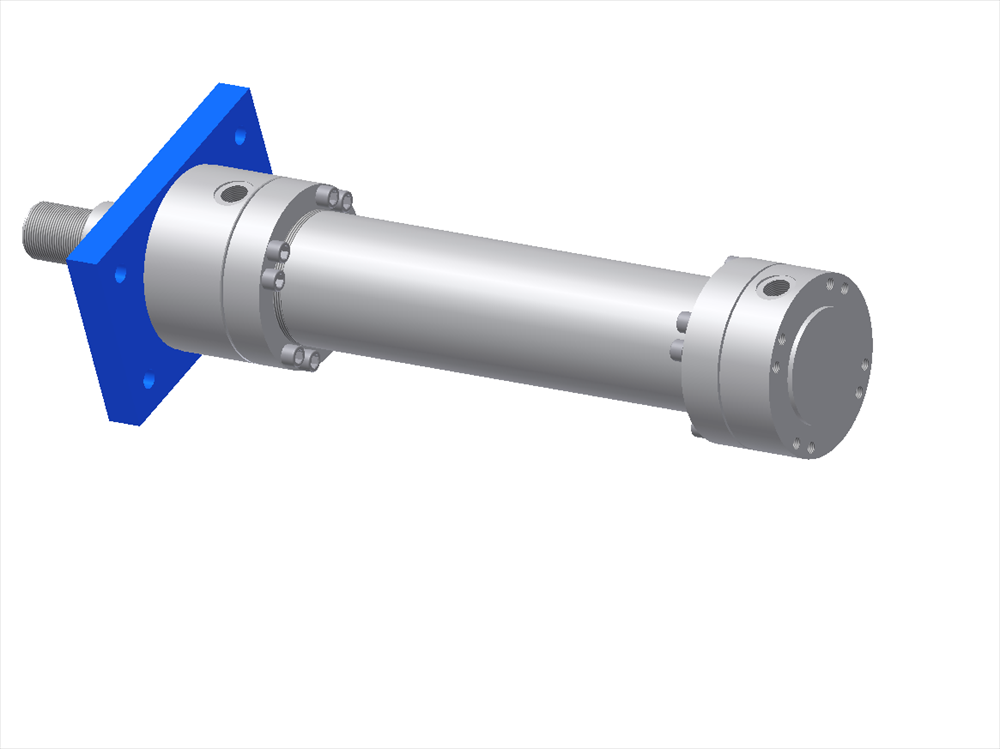

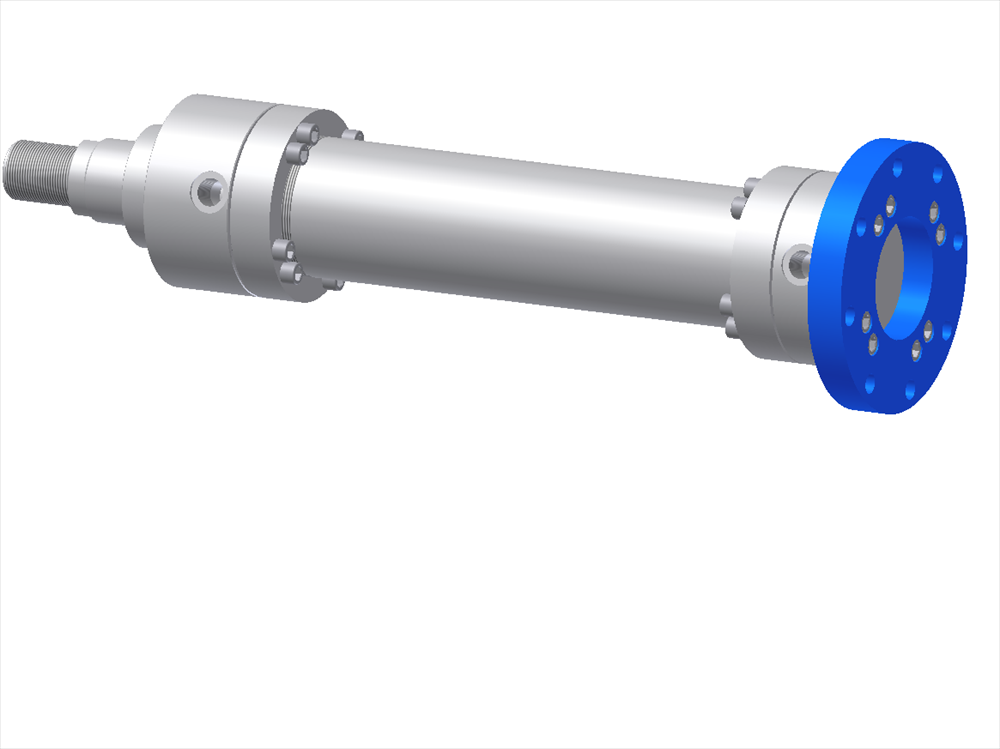

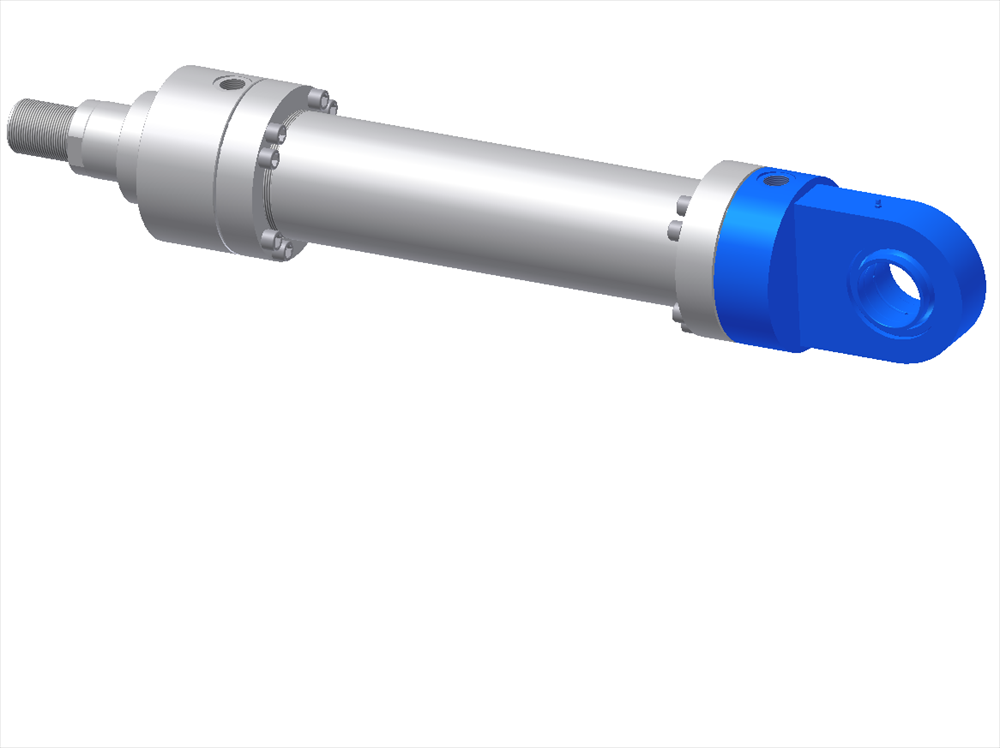

8 Mounting styles Ref. ISO MP3 – MF4 – MF3 –MS2 –MT4 – MF1 –MF2 –MP5

Options:

Fixed or adjustable cushions
Integrated head mounted proximity sensor
Integrated position transducer
Air bleeds
Rod treatment : chromed, induction hardened and chromed, nickel-chromed
Drainage

EPC Cylinder configurator
This is an innovative tool that allows the client to configure CA cylinders in a rapid and intuitive way, guiding the technician through the choices of all the options available. Once the cylinder code is defined, the EPC software provides 2D, 3D and PDF drawings, and gives the user the possibility to save projects and request offers.
With the complete access, reserved to the purchasing department, it is possible to make orders directly. For all orders received through EPC an extra discount will be applied.

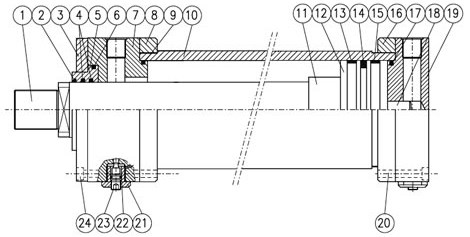

N°	ITEM	MATERIAL
1	Rod	Chromium-plated steel
2	Dust scraper	Nitrile rubber
3	Guide flange	Steel
4	Rod seal	Nitrile rubber + PTFE
5	Guide bushing	Steel
6	O-Ring + anti-extrusion	Nitrile rubber + sealon
7	Front head	Steel
8	Pipe flange	Steel
9	O-Ring + anti-extrusion	Nitrile rubber + sealon
10	Liner	Steel
11	Front brake bushing	Steel
12	Piston	Steel
13	Anti-friction slide	PTFE
14	Piston b seal	Nitrile rubber + PTFE
15	Anti-friction slide	Nitrile rubber + PTFE
16	Pipe flange	Steel
17	O-Ring + anti-extrusion	Nitrile rubber + sealon
18	Rear brake	Steel
19	Rear head	Steel
20	Cap screw	Steel
21	Safety plug	Steel
22	O-Ring	Nitrile rubber
23	Adjustment needle	Steel
24	Position indicator	Steel
